SAE-Einschraub-Gegenflansch NPT-Gewinde
Tabellen mit technischen Daten unserer SAE Hochdruckflanschverbindungen. Wählen Sie bitte aus unserer Produktpalette aus:
SAE-Einschraub-Gegenflansch NPT-Gewinde
Material:
1.) |
ST 44.3 (FE 430) |
|
2.) |
1.4404 |
rostfrei |
|
316L |
|
Bestellbezeichnung: |
ST 44.3 |
1.4404 |
- Flansch mit metrischen Gewinden |
GFS-...NM |
GFx-...NM |
- Flansch mit UNC-Gewinden |
GFS-...NU |
GFx-...NU |
Alle Angaben ohne Gewähr. Änderungen vorbehalten.

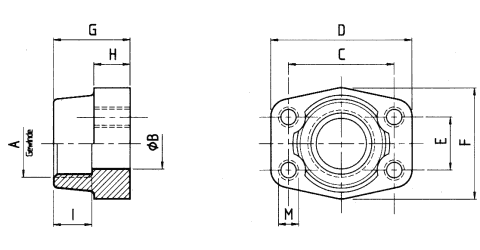

↓ Lochbild 3.000 P.S.I., Abmessungen
↓ Lochbild 3.000 P.S.I., M; Gewicht
maximaler Betriebsdruck kg/cm² |
SAE Baugröße |
Typ |
Abmessungen |
|||||||||
A |
B |
C |
D |
E |
F |
G |
H |
I |
||||
Lochbild 3.000 P.S.I. |
||||||||||||
345 |
1/2" |
GFS 80 N |
1/2" NPT |
13 |
38,10 |
54 |
17,48 |
46 |
36 |
16 |
19 |
|
345 |
1/2" |
GFS 80 N-038 |
3/8" NPT |
13 |
38,10 |
54 |
17,48 |
46 |
36 |
16 |
19 |
|
345 |
3/4" |
GFS 100 N |
3/4" NPT |
19 |
47,63 |
65 |
22,23 |
50 |
36 |
18 |
19 |
|
345 |
3/4" |
GFS 100 N-012 |
1/2" NPT |
13 |
47,63 |
65 |
22,23 |
50 |
36 |
18 |
19 |
|
345 |
1" |
GFS 102 N |
1" NPT |
25 |
52,37 |
70 |
26,19 |
55 |
38 |
18 |
22 |
|
345 |
1" |
GFS 102 N-034 |
3/4" NPT |
19 |
52,37 |
70 |
26,19 |
55 |
35 |
21 |
19 |
|
276 |
1 1/4" |
GFS 104 N |
1 1/4" NPT |
32 |
58,72 |
79 |
30,18 |
68 |
41 |
21 |
22 |
|
276 |
1 1/4" |
GFS 104 N-100 |
1" NPT |
25 |
58,72 |
81 |
30,18 |
65 |
42 |
25 |
22 |
|
207 |
1 1/2" |
GFS 106 N |
1 1/2" NPT |
38 |
69,85 |
93 |
35,71 |
78 |
45 |
25 |
24 |
|
207 |
1 1/2" |
GFS 106 N-114 |
1 1/4" NPT |
32 |
69,85 |
95 |
35,71 |
78 |
45 |
27 |
24 |
|
207 |
2" |
GFS 108 N |
2" NPT |
51 |
77,77 |
102 |
42,88 |
90 |
45 |
25 |
30 |
|
207 |
2" |
GFS 108 N-112 |
1 1/2" NPT |
38 |
77,77 |
102 |
42,88 |
90 |
45 |
25 |
26 |
|
172 |
2 1/2" |
GFS 110 N |
2 1/2" NPT |
63 |
88,90 |
114 |
50,80 |
105 |
50 |
25 |
30 |
|
138 |
3" |
GFS 112 N |
3" NPT |
73 |
106,38 |
134 |
61,93 |
124 |
50 |
27 |
34 |
|
34 |
3 1/2" |
GFS 114 N |
3 1/2" NPT |
89 |
120,65 |
152 |
69,85 |
136 |
48 |
27 |
34 |
|
34 |
4" |
GFS 116 N |
4" NPT |
99 |
130,18 |
162 |
77,77 |
146 |
48 |
27 |
34 |
|
max. Betriebsdruck kg/cm² |
SAE Baugröße |
Typ |
M |
Gewicht kg |
|
metr. |
unc |
||||
Lochbild 3.000 P.S.I. |
|||||
345 |
1/2" |
GFS 80 N |
M 8 |
5/16 |
0,25 |
345 |
1/2" |
GFS 80 N-038 |
M 8 |
5/16 |
0,28 |
345 |
3/4" |
GFS 100 N |
M 10 |
3/8 |
0,39 |
345 |
3/4" |
GFS 100 N-012 |
M 10 |
3/8 |
0,42 |
345 |
1" |
GFS 102 N |
M 10 |
3/8 |
0,46 |
345 |
1" |
GFS 102 N-034 |
M 10 |
3/8 |
0,49 |
276 |
1 1/4" |
GFS 104 N |
M 10 |
7/16 |
0,66 |
276 |
1 1/4" |
GFS 104 N-100 |
M 10 |
7/16 |
0,75 |
207 |
1 1/2" |
GFS 106 N |
M 12 |
1/2 |
1,05 |
207 |
1 1/2" |
GFS 106 N-114 |
M 12 |
1/2 |
1,10 |
207 |
2" |
GFS 108 N |
M 12 |
1/2 |
1,19 |
207 |
2" |
GFS 108 N-112 |
M 12 |
1/2 |
1,25 |
172 |
2 1/2" |
GFS 110 N |
M 12 |
1/2 |
1,40 |
138 |
3" |
GFS 112 N |
M 16 |
5/8 |
2,15 |
34 |
3 1/2" |
GFS 114 N |
M 16 |
5/8 |
2,40 |
34 |
4" |
GFS 116 N |
M 16 |
5/8 |
2,85 |
maximaler Betriebsdruck kg/cm² |
SAE Baugröße |
Typ |
Abmessungen |
|||||||||
A |
B |
C |
D |
E |
F |
G |
H |
I |
||||
Lochbild 6.000 P.S.I. |
||||||||||||
414 |
1/2" |
GFS 401 N-012 |
1/2" NPT |
13 |
40,49 |
54 |
18,24 |
46 |
36 |
16 |
19 |
|
414 |
1/2" |
GFS 401 N-038 |
3/8" NPT |
13 |
40,49 |
54 |
18,24 |
46 |
36 |
16 |
19 |
|
414 |
3/4" |
GFS 402 N |
3/4" NPT |
19 |
50,80 |
71 |
23,80 |
55 |
35 |
21 |
22 |
|
414 |
3/4" |
GFS 402 N-012 |
1/2" NPT |
13 |
50,80 |
71 |
23,80 |
55 |
35 |
21 |
22 |
|
414 |
1" |
GFS 403 N |
1" NPT |
25 |
57,15 |
81 |
27,76 |
65 |
42 |
25 |
24 |
|
414 |
1" |
GFS 403 N-034 |
3/4" NPT |
19 |
57,15 |
81 |
27,76 |
65 |
42 |
25 |
24 |
|
414 |
1 1/4" |
GFS 404 N |
1 1/4" NPT |
32 |
66,68 |
95 |
31,75 |
78 |
45 |
27 |
25 |
|
414 |
1 1/4" |
GFS 404 N-100 |
1" NPT |
25 |
66,68 |
95 |
31,75 |
78 |
45 |
27 |
25 |
|
414 |
1 1/2" |
GFS 405 N |
1 1/2" NPT |
38 |
79,38 |
112 |
36,50 |
94 |
50 |
30 |
28 |
|
414 |
1 1/2" |
GFS 405 N-114 |
1 1/4" NPT |
32 |
79,38 |
112 |
36,50 |
94 |
50 |
30 |
28 |
|
414 |
2" |
GFS 406 N |
2" NPT |
51 |
96,82 |
134 |
44,45 |
114 |
65 |
37 |
30 |
|
414 |
2" |
GFS 406 N-112 |
1 1/2" NPT |
38 |
96,82 |
134 |
44,45 |
114 |
65 |
37 |
30 |
|
max. Betriebsdruck kg/cm² |
SAE Baugröße |
Typ |
M |
Gewicht kg |
|
metr. |
unc |
||||
Lochbild 6.000 P.S.I. |
|||||
414 |
1/2" |
GFS 401 N-012 |
M 8 |
5/16 |
0,26 |
414 |
1/2" |
GFS 401 N-038 |
M 8 |
5/16 |
0,29 |
414 |
3/4" |
GFS 402 N |
M 10 |
3/8 |
0,50 |
414 |
3/4" |
GFS 402 N-012 |
M 10 |
3/8 |
0,55 |
414 |
1" |
GFS 403 N |
M 12 |
7/16 |
0,76 |
414 |
1" |
GFS 403 N-034 |
M 12 |
7/16 |
0,80 |
414 |
1 1/4" |
GFS 404 N |
M 14 |
1/2 |
1,20 |
414 |
1 1/4" |
GFS 404 N-100 |
M 14 |
1/2 |
1,30 |
414 |
1 1/2" |
GFS 405 N |
M 16 |
5/8 |
1,65 |
414 |
1 1/2" |
GFS 405 N-114 |
M 16 |
5/8 |
1,75 |
414 |
2" |
GFS 406 N |
M 20 |
3/4 |
2,45 |
414 |
2" |
GFS 406 N-112 |
M 20 |
3/4 |
2,55 |
