Vierkant-Anschweißflansch ND 400
Tabellen mit technischen Daten unserer SAE Hochdruckflanschverbindungen. Wählen Sie bitte aus unserer Produktpalette aus:
Vierkant-Anschweißflansch ND 400
Ausführung:
Schweißfugenform nach DIN 2559
Material:
Vierkant |
ST 52.3 / C45 |
Stutzen |
ST 52.3 / C15 |
auch in 1.4571 lieferbar |
Bestellbezeichnung: |
|
- nur Anschlussflansch |
VKA 43.../... |
- Flanschkupplung |
VKK 41.../... |
- inkl. Schraubensatz und O-Ring |
.../...M |
Alle Angaben ohne Gewähr. Änderungen vorbehalten.

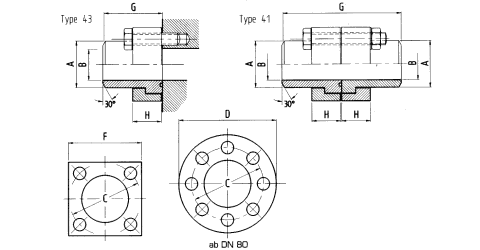

↓ Anschlussflansch, Abmessungen
↓ Anschlussflansch, O-Ring; Schrauben M; Gewicht
max. Betriebs- druck kg/cm² |
DN |
Typ |
Abmessungen |
||||||
A |
B |
C |
F |
D |
H |
G |
|||
Anschlussflansch |
|||||||||
400 |
10 |
VKA 43-10/17 |
17,2 × 3,6 |
10 |
44 |
50 |
|
20 |
43 |
400 |
16 |
VKA 43-16/26 |
26,9 × 5,6 |
16 |
54 |
60 |
|
20 |
50 |
400 |
20 |
VKA 43-20/33 |
33,7 × 6,3 |
21 |
64 |
70 |
|
20 |
56 |
400 |
25 |
VKA 43-25/42 |
42,7 × 8,0 |
26 |
72 |
80 |
|
25 |
64 |
400 |
32 |
VKA 43-32/60 |
60,3 × 12,5 |
35 |
98 |
100 |
|
38 |
80 |
400 |
40 |
VKA 43-40/70 |
70,0 × 14,2 |
41 |
118 |
120 |
|
45 |
100 |
400 |
50 |
VKA 43-50/88 |
88,9 × 17,5 |
54 |
145 |
150 |
|
48 |
109 |
400 |
65 |
VKA 43-65/101 |
101,6 × 20,0 |
62 |
175 |
180 |
|
58 |
135 |
400 |
80 |
VKA 43-80/139 |
139,7 × 28,0 |
83 |
200 |
|
245 |
70 |
150 |
400 |
100 |
VKA 43-100/168 |
168,3 × 32,0 |
104 |
245 |
|
300 |
80 |
190 |
400 |
125 |
VKA 43-125/219 |
219,1 × 45,0 |
129 |
290 |
|
355 |
90 |
190 |
max. Betriebs- druck kg/cm² |
DN |
Typ |
O-Ring |
Schrauben M |
Gewicht kg |
Anschlussflansch |
|||||
400 |
10 |
VKA 43-10/17 |
16,3 × 2,4 |
4 / M 10 × 35 |
0,45 |
400 |
16 |
VKA 43-16/26 |
25,3 × 2,4 |
4 / M 10 × 35 |
0,70 |
400 |
20 |
VKA 43-20/33 |
29,8 × 2,6 |
4 / M 12 × 35 |
0,90 |
400 |
25 |
VKA 43-25/42 |
34,5 × 2,6 |
4 / M 12 × 40 |
1,45 |
400 |
32 |
VKA 43-32/60 |
53,3 × 5,33 |
4 / M 16 × 50 |
2,20 |
400 |
40 |
VKA 43-40/70 |
61,0 × 5,0 |
4 / M 20 × 60 |
3,20 |
400 |
50 |
VKA 43-50/88 |
75,0 × 5,0 |
4 / M 24 × 70 |
5,60 |
400 |
65 |
VKA 43-65/101 |
88,0 × 6,0 |
4 / M 30 × 95 |
9,50 |
400 |
80 |
VKA 43-80/139 |
115,0 × 6,0 |
8 / M 24 × 100 |
17,60 |
400 |
100 |
VKA 43-100/168 |
148,0 × 7,0 |
8 / M 30 × 110 |
29,30 |
400 |
125 |
VKA 43-125/219 |
183,5 × 7,0 |
8 / M 36 × 130 |
48,20 |
max. Betriebs- druck kg/cm² |
DN |
Typ |
Abmessungen |
||||||
A |
B |
C |
F |
D |
H |
G |
|||
Flanschkupplung |
|||||||||
400 |
10 |
VKK 41-10/17 |
17,2 × 3,6 |
10 |
44 |
50 |
|
20 |
80 |
400 |
16 |
VKK 41-16/26 |
26,9 × 5,6 |
16 |
54 |
60 |
|
20 |
94 |
400 |
20 |
VKK 41-20/33 |
33,7 × 6,3 |
21 |
64 |
70 |
|
20 |
106 |
400 |
25 |
VKK 41-25/42 |
42,4 × 8,0 |
26 |
72 |
80 |
|
25 |
122 |
400 |
32 |
VKK 41-32/60 |
60,3 × 12,5 |
35 |
98 |
100 |
|
38 |
130 |
400 |
40 |
VKK 41-40/70 |
70,0 × 14,2 |
41 |
118 |
120 |
|
45 |
190 |
400 |
50 |
VKK 41-50/88 |
88,9 × 17,5 |
54 |
145 |
150 |
|
48 |
210 |
400 |
65 |
VKK 41-65/101 |
101,6 × 20,0 |
62 |
175 |
180 |
|
58 |
262 |
400 |
80 |
VKK 41-80/139 |
139,7 × 28,0 |
83 |
200 |
|
245 |
70 |
292 |
400 |
100 |
VKK 41-100/168 |
168,3 × 32,0 |
104 |
245 |
|
300 |
80 |
372 |
400 |
125 |
VKK 41-125/219 |
219,1 × 45,0 |
129 |
290 |
|
355 |
90 |
391 |
max. Betriebs- druck kg/cm² |
DN |
Typ |
O-Ring |
Schrauben M |
Gewicht kg |
Flanschkupplung |
|||||
400 |
10 |
VKK 41-10/17 |
16,3 × 2,4 |
4 / M 10 × 55 |
0,81 |
400 |
16 |
VKK 41-16/26 |
25,3 × 2,4 |
4 / M 10 × 60 |
1,21 |
400 |
20 |
VKK 41-20/33 |
29,8 × 2,6 |
4 / M 12 × 60 |
1,70 |
400 |
25 |
VKK 41-25/42 |
34,5 × 2,6 |
4 / M 12 × 70 |
2,70 |
400 |
32 |
VKK 41-32/60 |
53,3 × 5,33 |
4 / M 16 × 80 |
4,15 |
400 |
40 |
VKK 41-40/70 |
61,0 × 5,0 |
4 / M 20 × 110 |
6,25 |
400 |
50 |
VKK 41-50/88 |
75,0 × 5,0 |
4 / M 24 × 120 |
10,80 |
400 |
65 |
VKK 41-65/101 |
88,0 × 6,0 |
4 / M 30 × 130 |
18,35 |
400 |
80 |
VKK 41-80/139 |
115,0 × 6,0 |
8 / M 24 × 170 |
33,80 |
400 |
100 |
VKK 41-100/168 |
148,0 × 7,0 |
8 / M 30 × 200 |
57,20 |
400 |
125 |
VKK 41-125/219 |
183,5 × 7,0 |
8 / M 36 × 220 |
95,00 |
