GAI-NPT - Gerader Aufschraubstutzen
Tabellen mit technischen Daten unserer Verschraubungen nach DIN 2353 verzinkt und gelb verchromt oder Edelstahl 1.4571. Wählen Sie bitte aus unserer Produktpalette aus:
GAI-NPT - Gerader Aufschraubstutzen

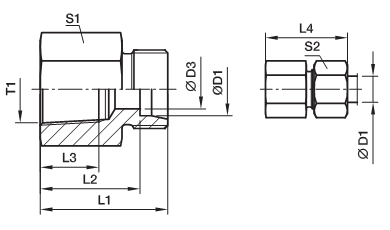

NPT Innengewinde (SAE 476) / EO 24° Anschluss
Bau- reihe |
D1
|
T1 |
D3 |
L1 |
L2 |
L3 |
L4 |
S1 |
S2 |
Ge- wicht g/1 St. |
Bestell- zeichen *) |
PN (bar) 1) |
|
CF |
71 |
||||||||||||
L 3) |
06 |
1/8 - 27 NPT |
4 |
26,0 |
19,0 |
11,6 |
34 |
14 |
14 |
19 |
GAI06L1/8NPT |
315 |
315 |
06 |
1/4 - 18 NPT |
4 |
30,5 |
23,5 |
16,4 |
38 |
19 |
14 |
38 |
GAI06L1/4NPT |
315 |
315 |
|
08 |
1/4 - 18 NPT |
6 |
30,5 |
23,5 |
16,4 |
38 |
19 |
17 |
39 |
GAI08L1/4NPT |
315 |
315 |
|
10 |
1/4 - 18 NPT |
8 |
31,0 |
24,0 |
16,4 |
39 |
19 |
19 |
40 |
GAI10L1/4NPT |
315 |
315 |
|
12 |
3/8 - 18 NPT |
10 |
34,0 |
27,0 |
17,4 |
42 |
24 |
22 |
69 |
GAI12L3/8NPT |
315 |
315 |
|
12 |
1/2 - 14 NPT |
10 |
39,0 |
32,0 |
22,6 |
47 |
27 |
22 |
91 |
GAI12L1/2NPT |
315 |
315 |
|
15 |
1/2 - 14 NPT |
12 |
40,0 |
33,0 |
22,6 |
48 |
27 |
27 |
96 |
GAI15L1/2NPT |
315 |
315 |
|
18 |
1/2 - 14 NPT |
15 |
40,0 |
32,5 |
22,6 |
49 |
27 |
32 |
99 |
GAI18L1/2NPT |
315 |
315 |
|
22 |
3/4 - 14 NPT |
19 |
43,0 |
35,5 |
23,1 |
52 |
36 |
36 |
184 |
GAI22L3/4NPT |
160 |
160 |
|
28 |
1 - 11 1/2 NPT |
24 |
48,0 |
40,5 |
27,8 |
57 |
41 |
41 |
238 |
GAI28L1NPT |
160 |
160 |
|
35 |
1 1/4 - 11 1/2 NPT |
30 |
51,0 |
40,5 |
28,3 |
62 |
55 |
50 |
424 |
GAI35L11/4NPT |
160 |
160 |
|
42 |
1 1/2 - 11 1/2 NPT |
36 |
53,0 |
42,0 |
28,3 |
65 |
60 |
60 |
547 |
GAI42L11/2NPT |
160 |
160 |
|
S 4) |
06 |
1/8 - 27 NPT |
4 |
29,0 |
22,0 |
11,6 |
36 |
14 |
17 |
25 |
GAI06S1/8NPT |
400 |
400 |
06 |
1/4 - 18 NPT |
4 |
33,0 |
26,0 |
16,4 |
41 |
19 |
17 |
41 |
GAI06S1/4NPT |
400 |
400 |
|
08 |
1/4 - 18 NPT |
5 |
33,0 |
26,0 |
16,4 |
41 |
19 |
19 |
42 |
GAI08S1/4NPT |
400 |
400 |
|
10 |
3/8 - 18 NPT |
7 |
35,0 |
27,0 |
17,4 |
44 |
24 |
22 |
74 |
GAI10S3/8NPT |
400 |
400 |
|
12 |
1/4 - 18 NPT |
8 |
32,5 |
25,0 |
16,4 |
41 |
22 |
24 |
81 |
GAI12S1/4NPT |
400 |
400 |
|
12 |
3/8 - 18 NPT |
8 |
35,0 |
27,5 |
17,4 |
44 |
24 |
24 |
76 |
GAI12S3/8NPT |
400 |
400 |
|
12 |
1/2 - 14 NPT |
8 |
41,0 |
33,5 |
22,6 |
50 |
27 |
24 |
101 |
GAI12S1/2NPT |
400 |
400 |
|
14 |
1/2 - 14 NPT |
10 |
43,0 |
35,0 |
22,6 |
53 |
27 |
27 |
108 |
GAI14S1/2NPT |
400 |
400 |
|
16 |
1/2 - 14 NPT |
12 |
43,0 |
34,5 |
22,6 |
50 |
27 |
30 |
111 |
GAI16S1/2NPT |
400 |
400 |
|
20 |
1/2 - 14 NPT |
16 |
44,0 |
33,5 |
22,6 |
55 |
32 |
36 |
129 |
GAI20S1/2NPT |
315 |
315 |
|
20 |
3/4 - 14 NPT |
16 |
46,0 |
35,5 |
23,1 |
57 |
36 |
36 |
214 |
GAI20S3/4NPT |
315 |
315 |
|
25 |
1 - 11 1/2 NPT |
20 |
53,0 |
41,0 |
27,8 |
65 |
41 |
46 |
288 |
GAI25S1NPT |
315 |
315 |
|
30 |
1 1/4 - 11 1/2 NPT |
25 |
57,0 |
43,5 |
28,3 |
70 |
55 |
50 |
559 |
GAI30S11/4NPT |
315 |
315 |
|
38 |
1 1/2 - 11 1/2 NPT |
32 |
59,0 |
43,0 |
28,3 |
74 |
60 |
60 |
632 |
GAI38S11/2NPT |
250 |
250 |
|
1) Druckwert genannt = Artikel lieferbar
3) L = leichte Baureihe
4) S = schwere Baureihe
PN (bar) |
= PN (MPa) |
10 |
Alle Angaben ohne Gewähr. Änderungen vorbehalten. Lieferung ohne Mutter und Schneidring.
*) Ergänzen Sie bitte die Bestellzeichen mit den Kennbuchstaben für das gewünschte Material:
Bestellzeichen-Ergänzungen |
||
Material: |
Kennbuchstaben Oberfläche und Material: |
|
Stahl, verzinkt, Cr(Ⅵ)-frei |
CF |
|
Edelstahl |
71 |
|
