RI - Reduzier-/Erweiterungsstutzen mit Innengewinde
Tabellen mit technischen Daten unserer Verschraubungen nach DIN 2353 verzinkt und gelb verchromt oder Edelstahl 1.4571. Wählen Sie bitte aus unserer Produktpalette aus:
RI - Reduzier-/Erweiterungsstutzen mit Innengewinde

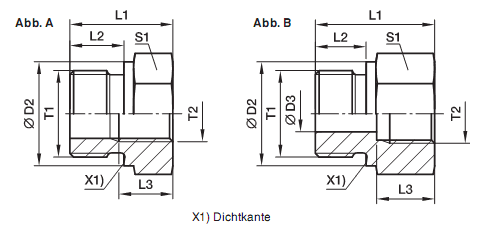

Zölliger Einschraubzapfen - Dichtkante (ISO 1179) / Zölliges Innengewinde (ISO 1179-1)
Außen- gewinde T1 |
Innen- gewinde T2 |
D2 |
D3 |
L1 |
L2 |
L3 |
S1 |
Abb. |
Ge- wicht g/1 St. |
Bestell- zeichen *) |
PN (bar) 1) |
||
CF |
71 |
MS |
|||||||||||
G 1/8 A |
G 1/4 |
14 |
4 |
31,0 |
8 |
17,0 |
19 |
B |
42 |
RI1/8X1/4 |
400 |
400 |
250 |
G 1/8 A |
G 3/8 |
14 |
4 |
32,0 |
8 |
17,0 |
24 |
B |
63 |
RI1/8X3/8 |
400 |
400 |
250 |
G 1/4 A |
G 1/8 |
18 |
5 |
28,0 |
12 |
12,0 |
19 |
B |
38 |
RI1/4X1/8 |
400 |
400 |
250 |
G 1/4 A |
G 3/8 |
18 |
5 |
36,0 |
12 |
17,0 |
24 |
B |
69 |
RI1/4X3/8 |
400 |
400 |
250 |
G 1/4 A |
G 1/2 |
18 |
5 |
40,0 |
12 |
20,0 |
30 |
B |
116 |
RI1/4X1/2 |
400 |
400 |
250 |
G 1/4 A |
G 3/4 |
18 |
5 |
43,0 |
12 |
22,0 |
36 |
B |
170 |
RI1/4X3/4 |
315 |
315 |
200 |
G 3/8 A |
G 1/8 |
22 |
|
22,5 |
12 |
8,0 |
22 |
A |
39 |
RI3/8X1/8 |
400 |
400 |
250 |
G 3/8 A |
G 1/4 |
22 |
8 |
36,0 |
12 |
17,0 |
22 |
B |
68 |
RI3/8X1/4 |
400 |
400 |
250 |
G 3/8 A |
G 1/2 |
22 |
8 |
41,0 |
12 |
20,0 |
30 |
B |
125 |
RI3/8X1/2 |
400 |
400 |
250 |
G 3/8 A |
G 3/4 |
22 |
8 |
44,0 |
12 |
22,0 |
36 |
B |
183 |
RI3/8X3/4 |
315 |
315 |
200 |
G 1/2 A |
G 1/8 |
26 |
|
24,0 |
14 |
8,0 |
27 |
A |
66 |
RI1/2X1/8 |
400 |
400 |
250 |
G 1/2 A |
G 1/4 |
26 |
|
24,0 |
14 |
12,0 |
27 |
A |
56 |
RI1/2X1/4 |
315 |
315 |
200 |
G 1/2 A |
G 3/8 |
26 |
12 |
36,0 |
14 |
17,0 |
27 |
B |
94 |
RI1/2X3/8 |
315 |
315 |
200 |
G 1/2 A |
G 3/4 |
26 |
12 |
46,0 |
14 |
22,0 |
36 |
B |
182 |
RI1/2X3/4 |
315 |
315 |
200 |
G 1/2 A |
G 1 |
26 |
12 |
49,0 |
14 |
24,5 |
41 |
B |
221 |
RI1/2X1 |
315 |
315 |
200 |
G 1/2 A |
G 1 1/4 |
26 |
10 |
53,0 |
14 |
26,5 |
55 |
B |
482 |
RI1/2X11/4 |
160 |
160 |
|
G 3/4 A |
G 1/4 |
32 |
|
26,0 |
16 |
12,0 |
32 |
A |
103 |
RI3/4X1/4 |
315 |
315 |
200 |
G 3/4 A |
G 3/8 |
32 |
|
26,0 |
16 |
12,0 |
32 |
A |
87 |
RI3/4X3/8 |
315 |
315 |
200 |
G 3/4 A |
G 1/2 |
32 |
16 |
41,0 |
16 |
20,0 |
32 |
B |
143 |
RI3/4X1/2 |
315 |
315 |
200 |
G 3/4 A |
G 1 |
32 |
16 |
51,0 |
16 |
24,5 |
41 |
B |
235 |
RI3/4X1 |
315 |
315 |
200 |
G 3/4 A |
G 1 1/4 |
32 |
16 |
55,0 |
16 |
26,5 |
55 |
B |
481 |
RI3/4X11/4 |
160 |
160 |
|
G 3/4 A |
G 1 1/2 |
32 |
16 |
57,0 |
16 |
28,5 |
60 |
B |
560 |
RI3/4X11/2 |
160 |
160 |
|
G 1 A |
G 1/4 |
39 |
|
29,0 |
18 |
12,0 |
41 |
A |
195 |
RI1X1/4 |
315 |
315 |
|
G 1 A |
G 3/8 |
39 |
|
29,0 |
18 |
12,0 |
41 |
A |
179 |
RI1X3/8 |
315 |
315 |
200 |
G 1 A |
G 1/2 |
39 |
|
29,0 |
18 |
14,0 |
41 |
A |
157 |
RI1X1/2 |
315 |
315 |
200 |
G 1 A |
G 3/4 |
39 |
20 |
47,0 |
18 |
22,0 |
41 |
B |
278 |
RI1X3/4 |
315 |
315 |
200 |
G 1 A |
G 1 1/4 |
39 |
20 |
57,0 |
18 |
26,5 |
55 |
B |
530 |
RI1X11/4 |
160 |
160 |
100 |
G 1 A |
G 1 1/2 |
39 |
20 |
59,0 |
18 |
28,5 |
60 |
B |
585 |
RI1X11/2 |
160 |
160 |
100 |
G 1 1/4 A |
G 1/2 |
49 |
|
32,0 |
20 |
14,0 |
50 |
A |
308 |
RI11/4X1/2 |
160 |
160 |
100 |
G 1 1/4 A |
G 3/4 |
49 |
|
32,0 |
20 |
16,0 |
50 |
A |
267 |
RI11/4X3/4 |
160 |
160 |
100 |
G 1 1/4 A |
G 1 |
49 |
25 |
52,0 |
20 |
24,5 |
50 |
B |
458 |
RI11/4X1 |
160 |
160 |
100 |
G 1 1/4 A |
G 1 1/2 |
49 |
25 |
60,0 |
20 |
28,5 |
60 |
B |
616 |
RI11/4X11/2 |
160 |
160 |
100 |
G 1 1/2 A |
G 1/2 |
55 |
|
36,0 |
22 |
14,0 |
55 |
A |
477 |
RI11/2X1/2 |
160 |
160 |
100 |
G 1 1/2 A |
G 3/4 |
55 |
|
36,0 |
22 |
16,0 |
55 |
A |
402 |
RI11/2X3/4 |
160 |
160 |
100 |
G 1 1/2 A |
G 1 |
55 |
|
36,0 |
22 |
18,0 |
55 |
A |
337 |
RI11/2X1 |
160 |
160 |
100 |
G 1 1/2 A |
G 1 1/4 |
55 |
32 |
58,0 |
22 |
26,5 |
55 |
B |
542 |
RI11/2X11/4 |
160 |
160 |
100 |
G 2 A |
G 1 1/2 |
68 |
40 |
62,0 |
24 |
28,5 |
70 |
B |
990 |
RI2X11/2 |
160 |
|
|
1) Druckwert genannt = Artikel lieferbar
PN (bar) |
= PN (MPa) |
10 |
Alle Angaben ohne Gewähr. Änderungen vorbehalten.
*) Ergänzen Sie bitte die Bestellzeichen mit den Kennbuchstaben für das gewünschte Material:
Bestellzeichen-Ergänzungen |
||
Material: |
Kennbuchstaben Oberfläche und Material: |
|
Stahl, verzinkt, Cr(Ⅵ)-frei |
CF |
|
Edelstahl |
71 |
|
Messing |
MS |
|
