WE-R(KEG) - Winkel-Einschraubstutzen
Tabellen mit technischen Daten unserer Verschraubungen nach DIN 2353 verzinkt und gelb verchromt oder Edelstahl 1.4571. Wählen Sie bitte aus unserer Produktpalette aus:

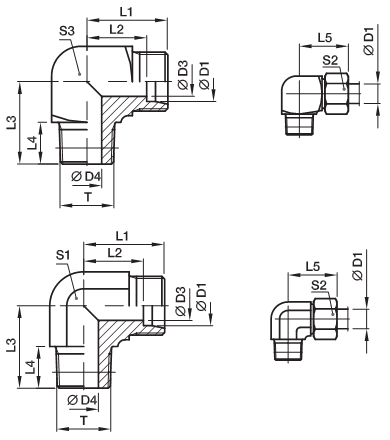

WE-R(KEG) - Winkel-Einschraubstutzen
EO 24° Anschluss / Zölliger Einschraubzapfen - kegelig (DIN 3852-2, Form C)
Profilkörper Stahl und Messing (S3) |
|
Reihe LL |
4-8 mm D1 |
Reihe L |
6-12 mm D1 |
Reihe S |
6-12 mm D1 |
Bau- reihe |
D1
|
T |
D3 |
D4 |
L1 |
L2 |
L3 |
L4 |
L5 |
S1 |
S2 |
S3 |
Ge- wicht g/1 St. |
Bestell- zeichen *) |
PN (bar) 1) |
||
CF |
71 |
MS |
|||||||||||||||
LL 2) |
04 |
R 1/8 keg. |
3,0 |
4,0 |
15 |
11,0 |
17 |
8 |
21 |
9 |
10 |
11 |
17 |
WE04LLR |
100 |
100 |
63 |
06 |
R 1/8 keg. |
4,5 |
4,5 |
15 |
9,5 |
17 |
8 |
21 |
9 |
12 |
11 |
17 |
WE06LLR |
100 |
100 |
63 |
|
08 |
R 1/8 keg. |
6,0 |
6,0 |
17 |
11,5 |
20 |
8 |
23 |
12 |
14 |
12 |
24 |
WE08LLR |
100 |
100 |
63 |
|
10 |
R 1/4 keg. |
8,0 |
7,0 |
18 |
12,5 |
23 |
12 |
24 |
12 |
17 |
14 |
36 |
WE10LLR |
100 |
|
|
|
12 |
R 1/4 keg. |
10 |
7,0 |
19 |
13,0 |
23 |
12 |
25 |
14 |
19 |
17 |
46 |
WE12LLR |
100 |
|
|
|
L 3) |
06 |
R 1/8 keg. |
4,0 |
4,0 |
19 |
12,0 |
20 |
8 |
27 |
12 |
14 |
12 |
30 |
WE06LR |
315 |
315 |
200 |
06 |
R 1/4 keg. |
4,0 |
6,0 |
21 |
14,0 |
26 |
12 |
29 |
12 |
14 |
14 |
47 |
WE06LR1/4 |
315 |
315 |
|
|
08 |
R 1/4 keg. |
6,0 |
6,0 |
21 |
14,0 |
26 |
12 |
29 |
12 |
17 |
14 |
46 |
WE08LR |
315 |
315 |
200 |
|
08 |
R 1/8 keg. |
6,0 |
4,0 |
21 |
14,0 |
26 |
8 |
29 |
12 |
17 |
14 |
49 |
WE08LR1/8 |
315 |
315 |
|
|
08 |
R 3/8 keg. |
6,0 |
9,0 |
24 |
17,0 |
28 |
12 |
32 |
17 |
17 |
19 |
94 |
WE08LR3/8 |
315 |
315 |
|
|
10 |
R 1/4 keg. |
8,0 |
7,0 |
22 |
15,0 |
27 |
12 |
30 |
14 |
19 |
17 |
61 |
WE10LR |
315 |
315 |
200 |
|
10 |
R 3/8 keg. |
8,0 |
9,0 |
24 |
17,0 |
28 |
12 |
32 |
17 |
19 |
19 |
87 |
WE10LR3/8 |
315 |
315 |
|
|
12 |
R 3/8 keg. |
10,0 |
9,0 |
24 |
17,0 |
28 |
12 |
32 |
17 |
22 |
19 |
88 |
WE12LR |
315 |
315 |
200 |
|
12 |
R 1/4 keg. |
10,0 |
7,0 |
24 |
17,0 |
27 |
12 |
32 |
17 |
22 |
19 |
80 |
WE12LR1/4 |
315 |
315 |
|
|
12 |
R 1/2 keg. |
10,0 |
11,0 |
28 |
21,0 |
34 |
14 |
36 |
19 |
22 |
|
89 |
WE12LR1/2 |
315 |
315 |
|
|
15 |
R 1/2 keg. |
12,0 |
11,0 |
28 |
21,0 |
34 |
14 |
36 |
19 |
27 |
|
94 |
WE15LR |
315 |
315 |
200 |
|
18 |
R 1/2 keg. |
15,0 |
14,0 |
31 |
23,5 |
36 |
14 |
40 |
24 |
32 |
|
141 |
WE18LR |
315 |
315 |
200 |
|
S 4) |
06 |
R 1/4 keg. |
4,0 |
4,0 |
23 |
16,0 |
26 |
12 |
31 |
12 |
17 |
14 |
56 |
WE06SR |
400 |
250 |
|
06 |
R 3/8 keg. |
4,0 |
7,0 |
25 |
18,0 |
28 |
12 |
33 |
17 |
17 |
19 |
61 |
WE06SR3/8 |
400 |
400 |
|
|
08 |
R 1/4 keg. |
5,0 |
5,0 |
24 |
17,0 |
27 |
12 |
32 |
14 |
19 |
17 |
73 |
WE08SR |
400 |
400 |
250 |
|
08 |
R 3/8 keg. |
5,0 |
7,0 |
25 |
18,0 |
28 |
12 |
33 |
17 |
19 |
19 |
63 |
WE08SR3/8 |
400 |
400 |
|
|
10 |
R 3/8 keg. |
7,0 |
7,0 |
25 |
17,5 |
28 |
12 |
34 |
17 |
22 |
19 |
104 |
WE10SR |
400 |
400 |
250 |
|
10 |
R 1/4 keg. |
7,0 |
5,0 |
25 |
17,5 |
28 |
12 |
34 |
17 |
22 |
19 |
59 |
WE10SR1/4 |
400 |
400 |
|
|
10 |
R 1/2 keg. |
7,0 |
10,0 |
30 |
22,5 |
32 |
14 |
39 |
19 |
22 |
|
98 |
WE10SR1/2 |
400 |
400 |
|
|
12 |
R 3/8 keg. |
8,0 |
8,0 |
29 |
21,5 |
28 |
12 |
38 |
17 |
24 |
22 |
126 |
WE12SR |
400 |
400 |
250 |
|
12 |
R 1/2 keg. |
8,0 |
11,0 |
30 |
22,5 |
32 |
14 |
39 |
19 |
24 |
|
97 |
WE12SR1/2 |
400 |
400 |
|
|
14 |
R 1/2 keg. |
10,0 |
10,0 |
30 |
22,0 |
32 |
14 |
40 |
19 |
27 |
|
101 |
WE14SR |
400 |
400 |
250 |
|
16 |
R 1/2 keg. |
12,0 |
12,0 |
33 |
24,5 |
32 |
14 |
43 |
24 |
30 |
|
150 |
WE16SR |
400 |
400 |
250 |
|
1) Druckwert genannt = Artikel lieferbar
2) LL = sehr leichte Baureihe
3) L = leichte Baureihe
4) S = schwere Baureihe
PN (bar) |
= PN (MPa) |
10 |
Alle Angaben ohne Gewähr. Änderungen vorbehalten. Lieferung ohne Mutter und Schneidring.
*) Ergänzen Sie bitte die Bestellzeichen mit den Kennbuchstaben für das gewünschte Material:
Bestellzeichen-Ergänzungen |
||
Material: |
Kennbuchstaben Oberfläche und Material: |
|
Stahl, verzinkt, Cr(Ⅵ)-frei |
CF |
|
Edelstahl |
71 |
|
Messing |
MS |
|
